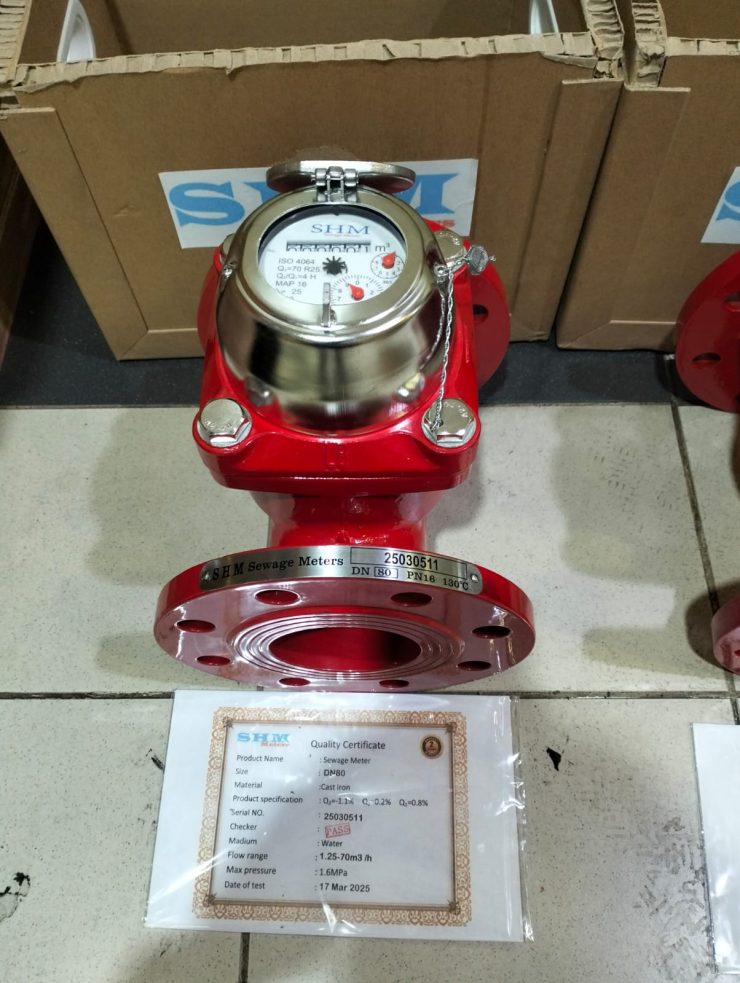

Flow Meter Limbah SHM 3 Inch

Specifications

Size (DN) : 80, 3 Inch, (80 mm)

Max. Flow QMax : 80 m³/hour

Continues Flow QN : 40 m³/hour

Transitional Flow QT : 8 m³/hour

Min Flow QMin : 1.2 m³/hour

Length (L) : 225 mm

High (H) : 281 mm

Connection Flange : Outside Diameter (D1) 200, Bolt inner Diameter (D2) 160

Weights : 16 Kg
