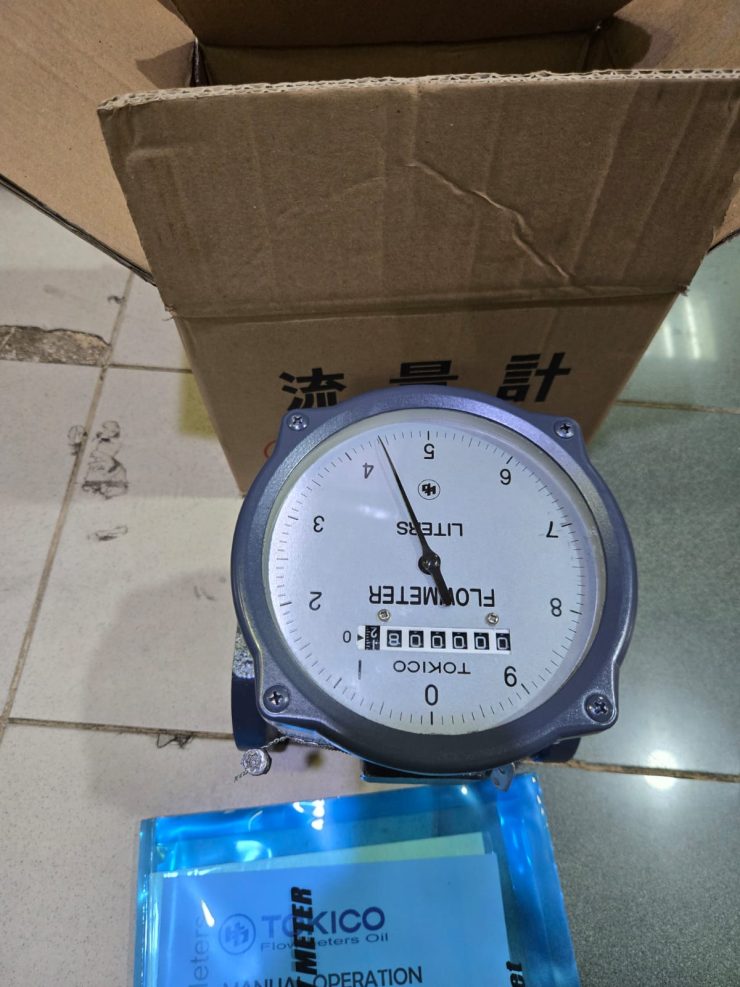

FLOW METER TOKICO 3/4 INCH, TOKICO FGBB631-04X
| Measurable Fluids | Gasoline, Kerosene,Light Oil,Heavy Oil & Crude Oil |
| Accuracy | ±0.5% |
| Flow Range Kerosene, Light Oil | 40 ~ 1,250 l/h |
| Flow Range Heavy Oil | 20 ~ 1,250 l/h |
| Max. Operating Pressure | 10 Kgf/cm² |
| Hydraulic Test Pressure | 20 Kgf/cm² |
| Max. Temperature Heavy Oil | 80oC |
| Flange Rating | JIS 10 Kgf/cm² |
| Counter Unit | Integrating Pointer and Integrating Counter |
| Body Material | Cast Iron |
